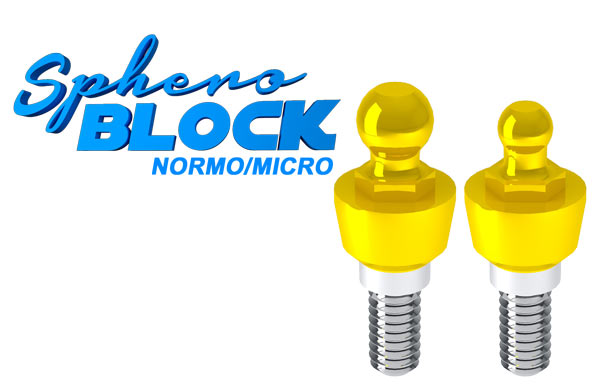

Spheroblock COMP

















The Sphero Block implant abutment for overdenture attachments is compatible with any implant system currently on the market. Sphero Block is a stationary ball implant attachment that comes in 2.5 mm and 1.8 mm diameters. It has been designed to correct angulation issues up to 28° between 2 implant abutments.
This attachment is titanium nitrate coated and has a Vickers surface hardness of 1600. The female component of the attachment is a nylon cap that comes in a variety of colors and snaps over the ball to help prevent wear and increase retention.

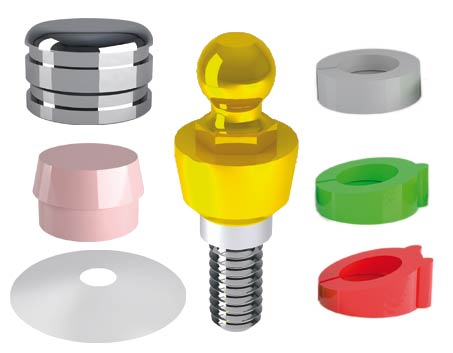

Sphero Block

Sphero Block w/ Titanium Nitate coating - Standard Sphero Block normo002

Ref. 002

Kit Contains
- 1 Titanium Abutment [2.5 mm Sphere]
- 2 Pink Caps - Soft Retention
- 1 Stainless Steel Housing
- 1 Protective Disk
- 3 Directional Rings




Sphero Block micro003

Sphero Block w/ Titanium Nitrate coating - Micro

Ref. 003

Kit Contains
- 1 Titanium Abutment [2.5 mm Sphere]
- 2 Pink Caps - Soft Retention
- 1 Stainless Steel Housing
- 1 Protective Disk
- 3 Directional Rings


Directional Rings For Sphero Flex and Sphero Block

Ref. 100AD

Kit Contains
- 3 Colored Rings With Inclination - 0°, 7°, 14°


Standard Size Analog Kit - For Sphero Flex and Sphero Block

Ref. 044ABN

Kit Contains
- 1 Standard Size Analog
- 3 Colored Directional Rings With Inclination - 0°, 7°, 14°
- 1 Black Standard Cap for Laboratory Use



Micro Size Analog Kit - For Sphero Block

Ref. 044ABM

Kit Contains
- 1 Micro Size Analog
- 3 Colored Directional Rings With Inclination - 0°, 7°, 14°
- 1 Black Micro Cap for Laboratory Use



Tools

Chiave Sphero block flex oro 771CEF chiusaKey for Sphero Block & Sphero Flex

Ref. 771CEF
Kit Contains
- Fits Standard & Micro spheres
- 2.3 mm Hex




Chiave manipolo equator da-sola 760CEHex Driver for Torque Controller - Contra Angle

Ref. 760CBM






Anti-Unscrewing System With Elastic Dowel

Ref. TE

Applies to Sphero Flex & Sphero Block
