OT EQUATOR EASY FIX

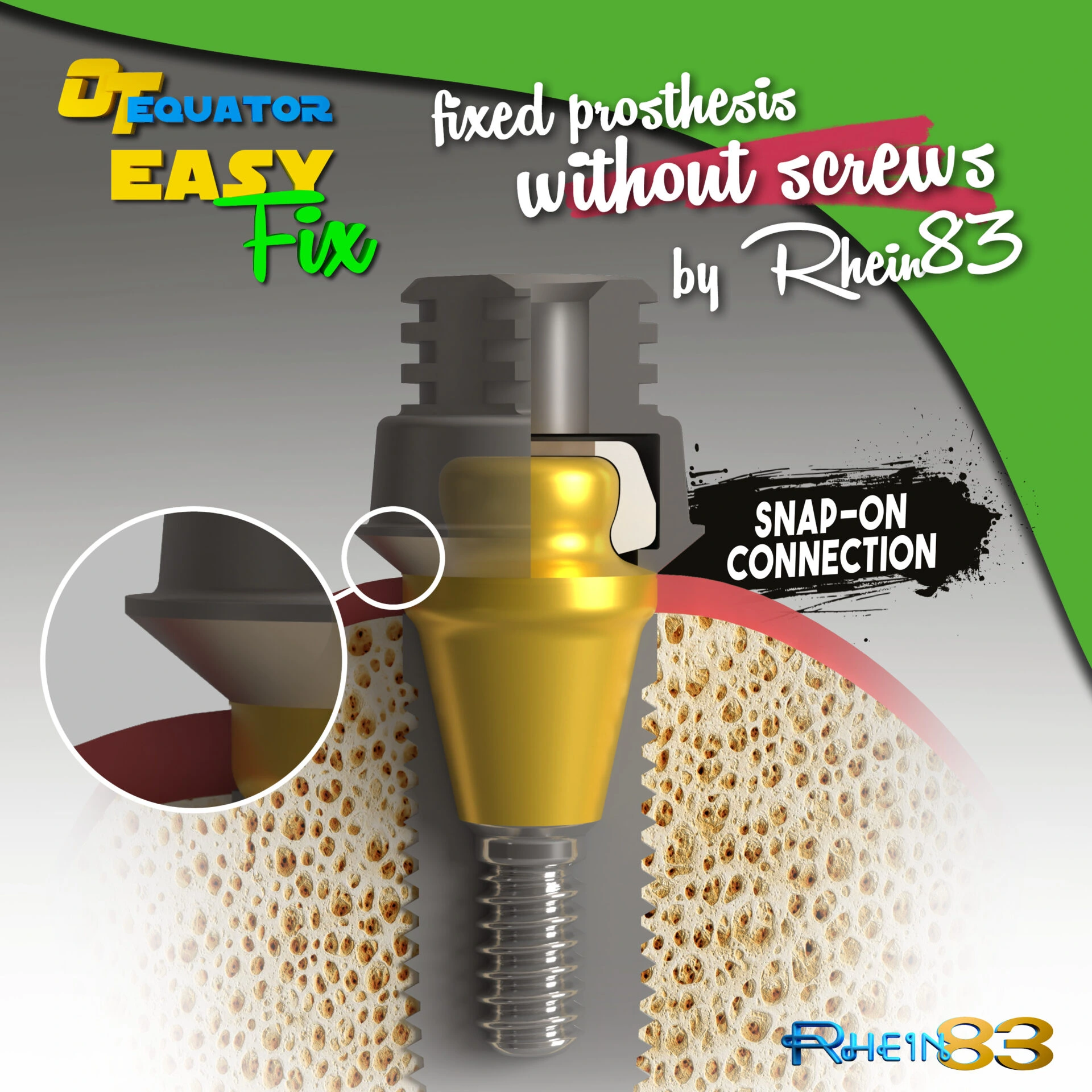

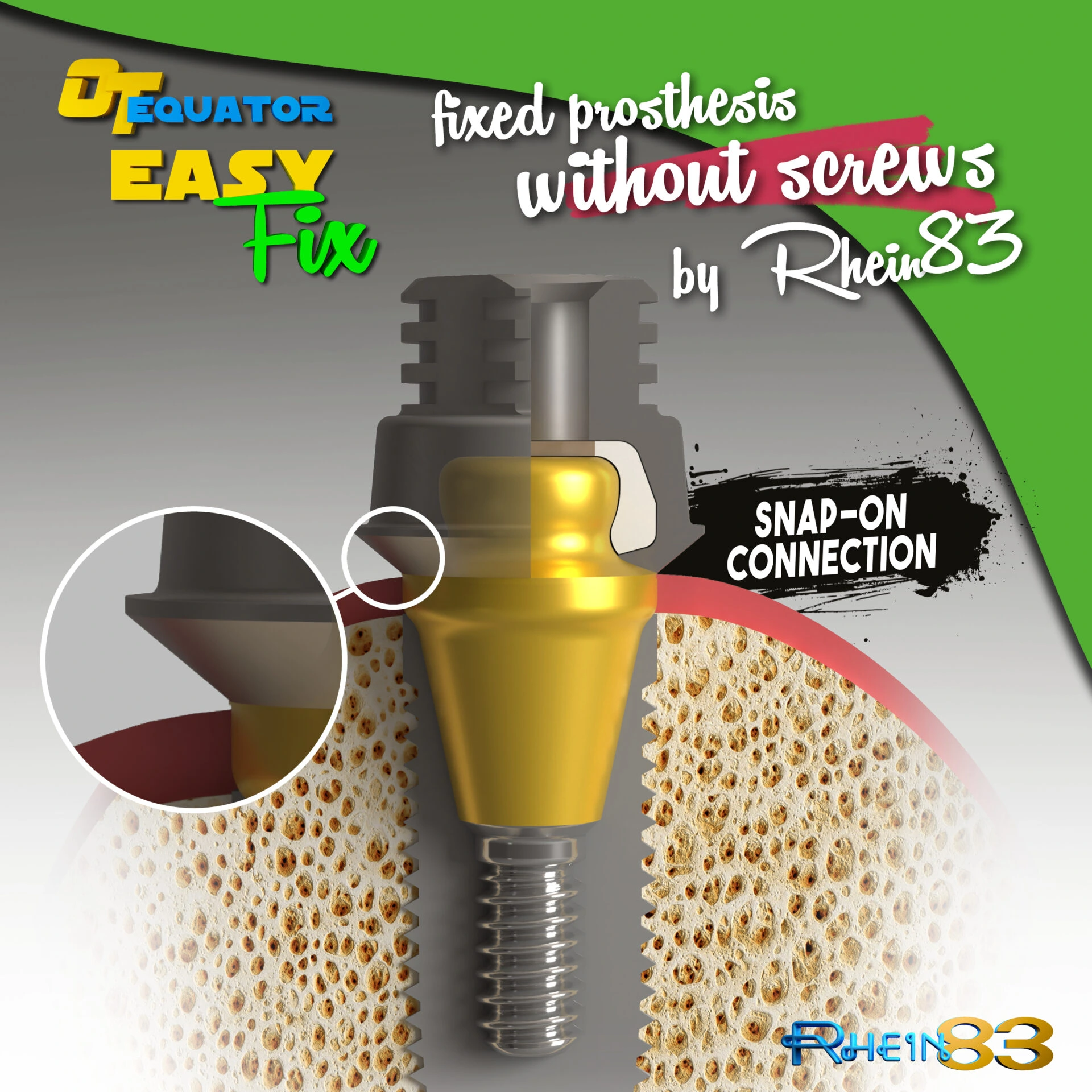

Easy Fix is the patented solution by Rhein83 designed to create screwless full-arch fixed prosthetic structures.
Thanks to a special release key, the restorations can be easily removed and inspected in a simple, non-invasive manner.

The innovative T-Base houses a new PEEK Seeger ring, which allows for angulation correction up to 60°.

The system requires only one access hole for unlocking, which can be strategically placed in the most convenient and aesthetic location within the prosthetic design—preserving both functionality and appearance of the restoration.

The retention of the fixed prosthesis is managed using three different Seeger ring retention levels, which can be adapted according to the number of implants present.

Easy Fix combines control, safety, and design flexibility in a single solution, enabling clinicians to work with any implant platform and diameter counting on the OT Equator abutments.

Video Download Download DOWNLOAD THE BROCHURE REQUEST INFORMATION
Thumbs-up Thumbs-up Easy Fix Advantages
OPERATING PROTOCOLS
CLINICAL CASES
VIDEO
PRODUCT CODE

Why EASY FIX?

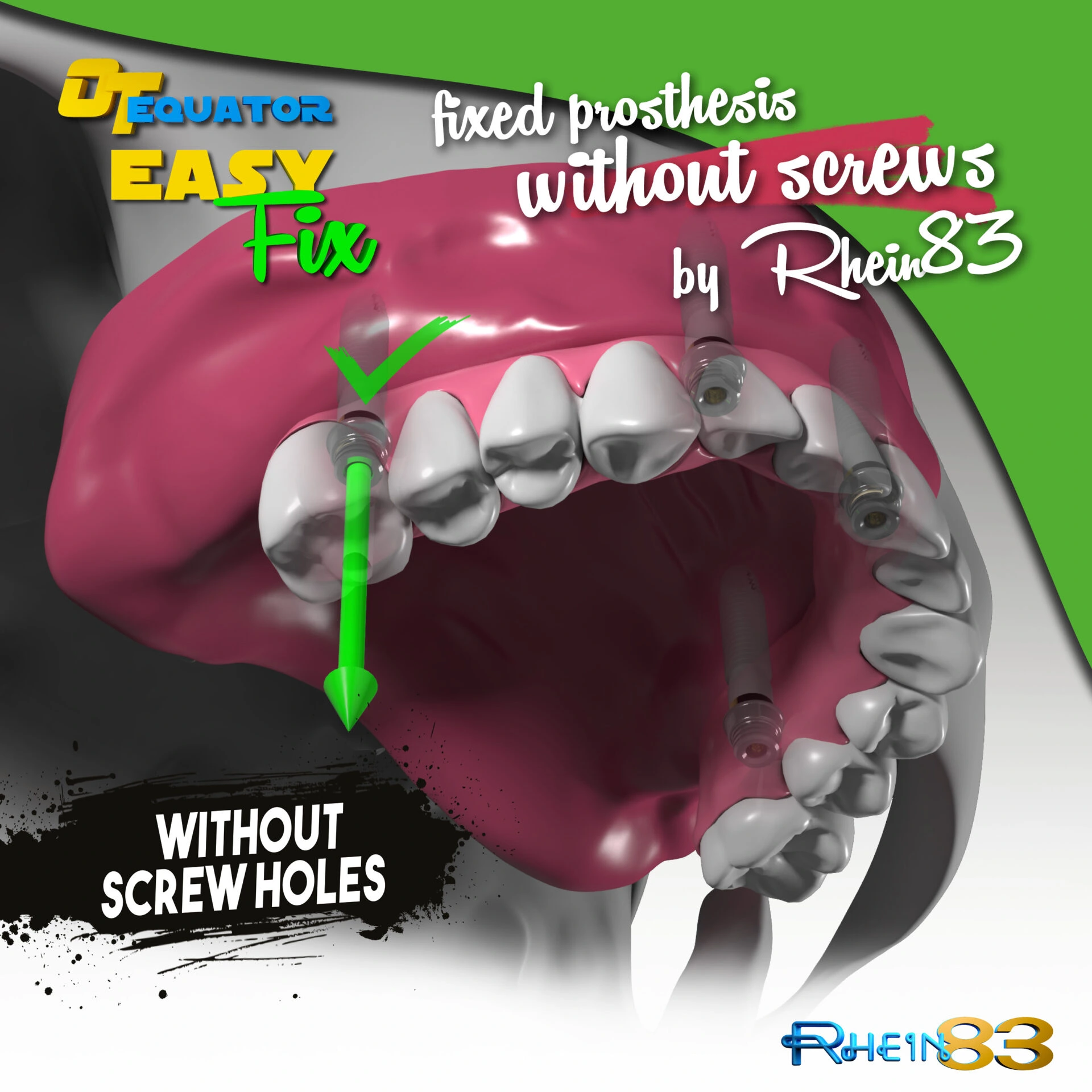

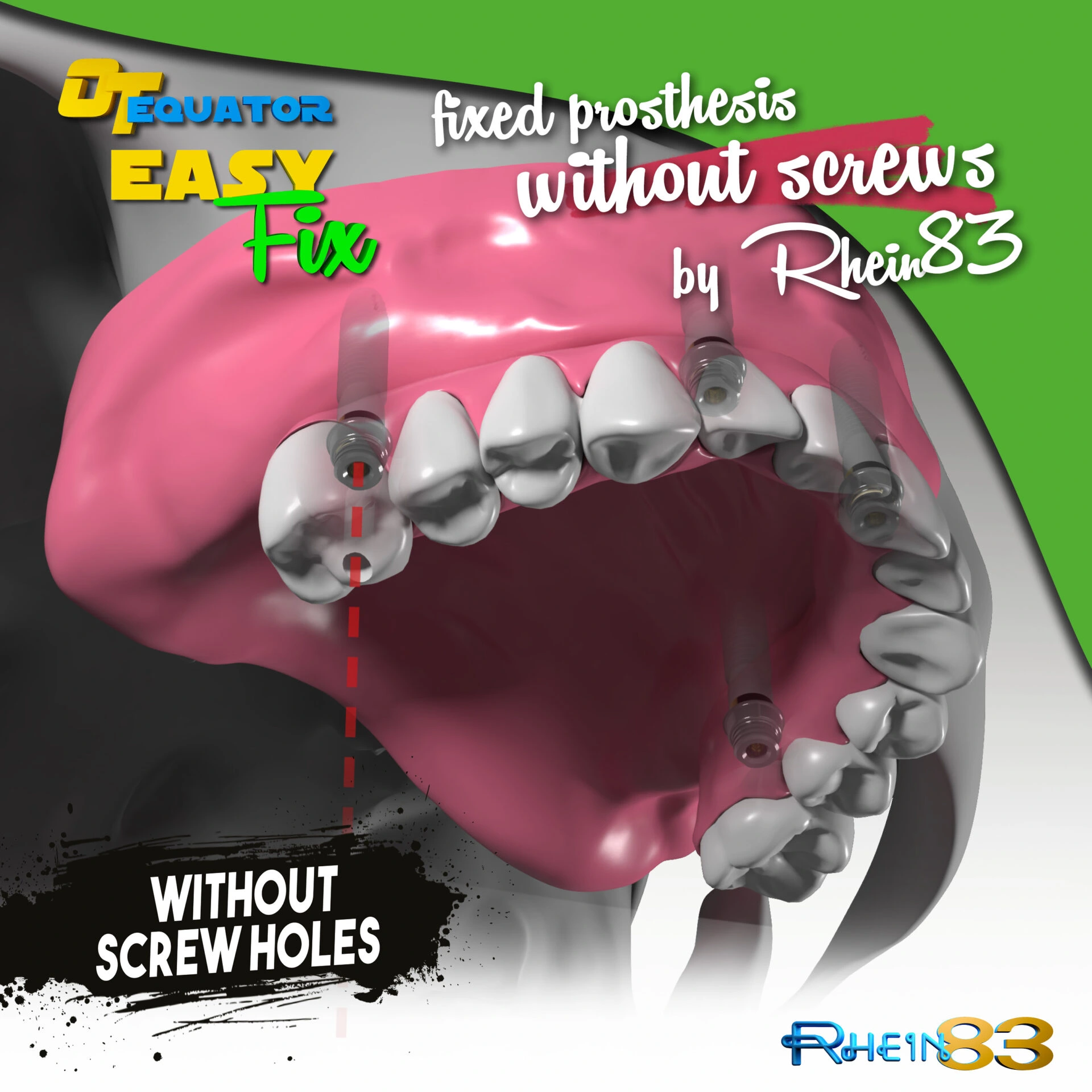

rhein83Absence of prosthetic screws in Full Arch projects

rhein83Prosthetic seal comparable to a Standard T-Base System

rhein83Atraumatic removal thanks to an unlocking device

rhein83Simple and safe insertion up to 60°

rhein83Simplified periodic hygiene

Watch the webinar

Main advantages of Easy-Fix

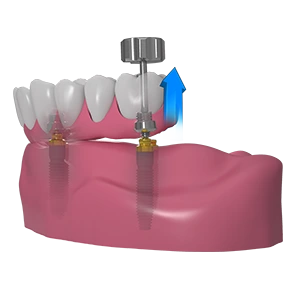

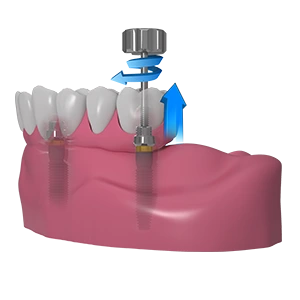

1. Simple prosthesis removal rhein83

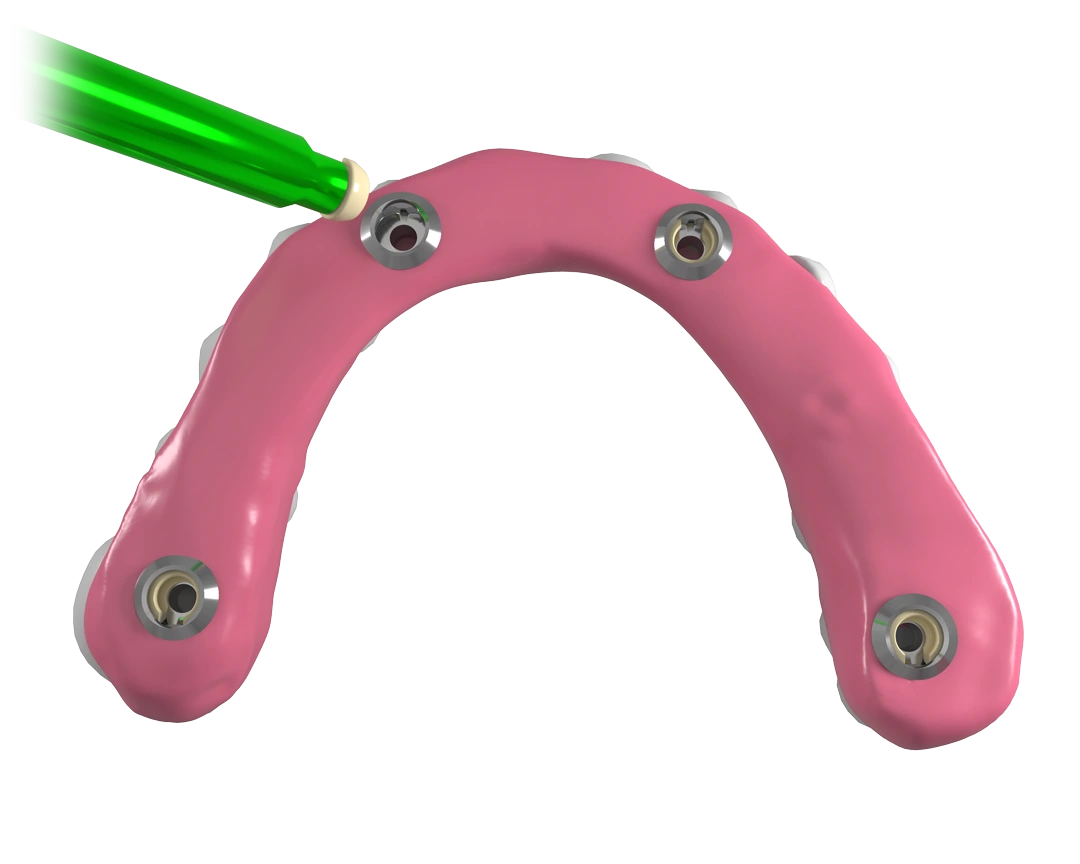

To unlock the Easy Fix prosthesis, only 1 hole must be left to insert the Unlocking Tool.
By screwing the unlocking tool into the Easy Fix T-Base the prosthesis will be lifted allowing
atraumatic removal of the prosthesis.

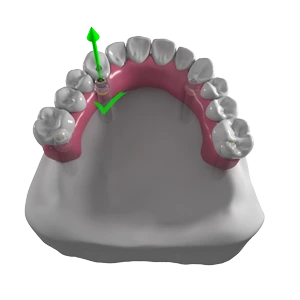

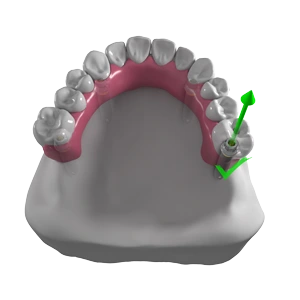

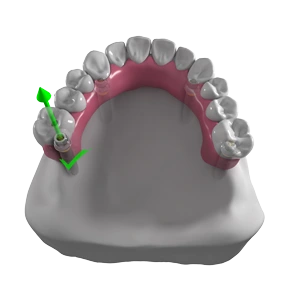

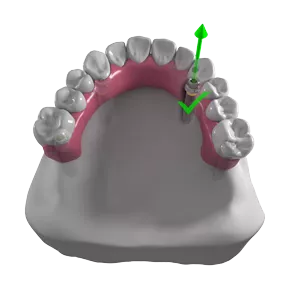

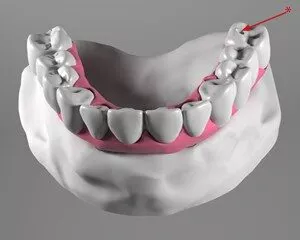

2. You choose where to place the release hole rhein83

Using the Easy Fix system you have the option of leaving only 1 release hole
in the most aesthetically and functionally convenient location for your prosthetic project.

3. Manage the tightness of the prosthesis rhein83

Thanks to three different retention forces of the Seeger ring, it is possible to manage the correct retention of the prosthesis in relation to the number of implants.

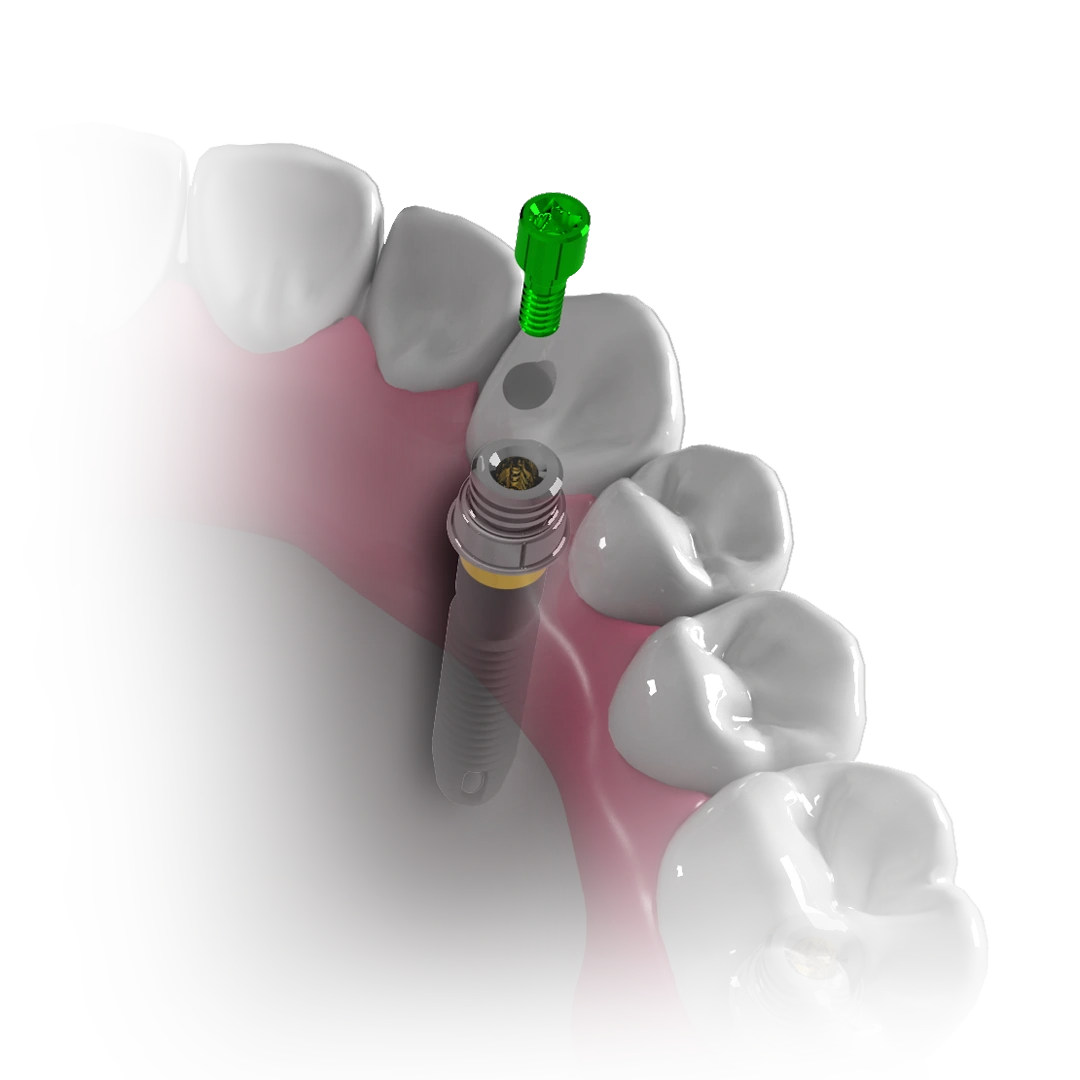

Optional safety screw

To be used in the release hole

Seeger inserter

The Seeger ring is inserted inside the T-Base Easy Fix with the special insertion tool.

The opening of the seeger will correspond to the ‘Extragrade’ portion of the Easy Fix T-Base.

Construction of the Easy Fix structure

Analogue operating protocol

rhein83

1. Ot Equator attachments placed in the patient’s mouth.

rhein83

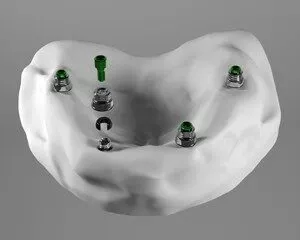

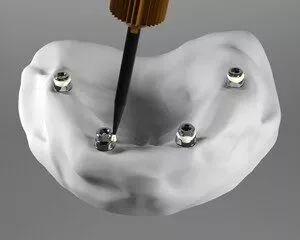

4. Plaster model with Easy Fix T-Base with fixing screw and laboratory seeger.

rhein83

7. Cement Easy Fix T-Base inside the metal structure with Ot Cem cement.

rhein83












2. Screw the Titanium Transfers onto the Ot Equator attachments to proceed with the impression.

rhein83

5. Place the castable sleeves on the Easy Fix T-Base

rhein83

8. Metal frame with T-base cemented in place

rhein83

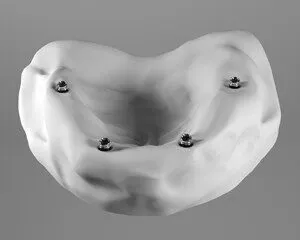

3. Plaster working model with laboratory analogues.

rhein83

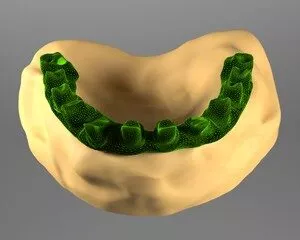

6. Designing a structure

rhein83

9. Finished work with hole for release tool in position 16*

Digital operating protocol

rhein83

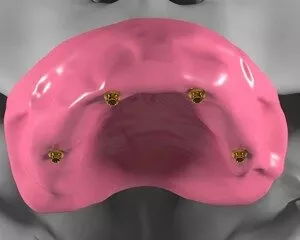

1. Ot Equator attachments placed in the patient’s mouth

rhein83

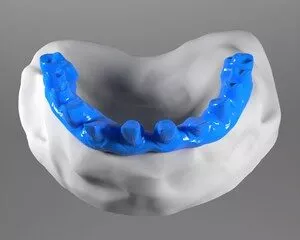

4. Structure modelling with digital libraries

rhein83

7. Easy Fix T-Base in place within the finished structure

rhein83

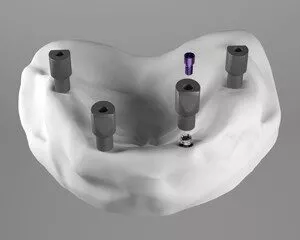

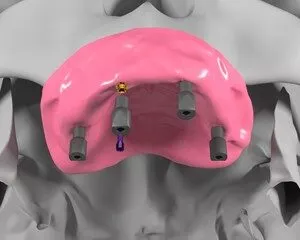

2. Screw Scan Abutment onto the Ot Equator attachments to proceed with digital impression taking using an intraoral scanner.

rhein83

5. Cement Easy Fix T-Base inside the milled structure with Ot Cem cement.

rhein83

8. Finished work with hole for release tool in position 16*

rhein83












3. Plaster working model with laboratory analogues

rhein83












6. Milled structure with T-Base cemented in place

Easy Fix Videos

Thumbs-up Thumbs-up Easy Fix Advantages
OPERATING PROTOCOLS
CLINICAL CASES
VIDEO
PRODUCT CODE

PRODUCT CODE

Kit Easy FixSpare partsScrewsImpression copingsLaboratory analogsOT Equator Scan AbutmentTools
PreviousNext

EASY FIX SET

rhein83

ALL ON FOUR OT EQUATOR + EASY FIX

Ref. KEF44 (h.4mm) - KEF46 (h.6mm) - KEF49 (h.9mm)

SET CONTENT
• 4 OT EQUATOR TITANIUM ABUTMENTS WITH TiN COATING
• 4 TITANIUM EASY FIX T-BASE Ø 3,5 mm
• 1 EASY FIX LOCKING SCREW
• 4 WHITE PEEK SEEGER STRONG RETENTION
• 4 PINK PEEK SEEGER MEDIUM RETENTION
• 4 IVORY PEEK SEEGER SOFT RETENTION
• 4 BLACK PEEK SEEGER FOR LABORATORY USE

rhein83

4 EASY FIX T-BASE

Ref. KEF4MEF (h.4mm) - KEF4MAEF (h.6mm) - KEF4MLEF (h.9mm)

SET CONTENT
• 4 TITANIUM EASY FIX T-BASE Ø 3,5 mm
• 1 EASY FIX LOCKING SCREW
• 4 WHITE PEEK SEEGER STRONG RETENTION
• 4 PINK PEEK SEEGER MEDIUM RETENTION
• 4 IVORY PEEK SEEGER SOFT RETENTION
• 4 BLACK PEEK SEEGER FOR LABORATORY USE

rhein83EASY FIX T-BASE

T-base h 4 mm

Ref. KMSRF

SET CONTENT
• 1 TITANIUM EASY FIX T-BASE Ø 3,5 mm
• 1 WHITE PEEK SEEGER STRONG RETENTION
• 1 PINK PEEK SEEGER MEDIUM RETENTION
• 1 IVORY PEEK SEEGER SOFT RETENTION
• 1 BLACK PEEK SEEGER FOR LABORATORY USE

rhein83EASY FIX T-BASE

T-base h 6 mm

Ref. KMASRF

SET CONTENT
• 1 TITANIUM EASY FIX T-BASE Ø 3,5 mm
• 1 WHITE PEEK SEEGER STRONG RETENTION
• 1 PINK PEEK SEEGER MEDIUM RETENTION
• 1 IVORY PEEK SEEGER SOFT RETENTION
• 1 BLACK PEEK SEEGER FOR LABORATORY USE

rhein83EASY FIX T-BASE

T-base h 9 mm

Ref. KMLSRF

SET CONTENT
• 1 TITANIUM EASY FIX T-BASE Ø 3,5 mm
• 1 WHITE PEEK SEEGER STRONG RETENTION
• 1 PINK PEEK SEEGER MEDIUM RETENTION
• 1 IVORY PEEK SEEGER SOFT RETENTION
• 1 BLACK PEEK SEEGER FOR LABORATORY USE

rhein83EASY FIX SEEGER SET

Ref. KSEF

SET CONTENT
• 1 WHITE PEEK SEEGER STRONG RETENTION
• 1 PINK PEEK SEEGER MEDIUM RETENTION
• 1 IVORY PEEK SEEGER SOFT RETENTION
• 1 BLACK PEEK SEEGER FOR LABORATORY USE

SPARE PARTS

rhein83

• 1 OT EQUATOR TITANIUM ABUTMENT WITH TiN COATING

Ref. 030

rhein83• 1 TITANIUM EASY FIX T-BASE h 4mm Ø 3,5 mm

Ref. RMEF

rhein83• 1 TITANIUM EASY FIX T-BASE h 6mm Ø 3,5 mm

Ref. RMAEF

rhein83• 1 TITANIUM EASY FIX T-BASE h 9mm Ø 3,5 mm

Ref. RMLEF

rhein83• 4 WHITE PEEK SEEGER STRONG RETENTION

Ref. KSST

rhein83• 4 PINK PEEK SEEGER MEDIUM RETENTION

Ref. KSM

rhein83• 4 IVORY PEEK SEEGER SOFT RETENTION

Ref. KSSO

rhein83• 4 BLACK PEEK SEEGER FOR LABORATORY USE

Ref. KSSO

rhein83• 1 EASY FIX CASTABLE SLEEVE h 4mm

Ref. 240GCEF

rhein83• 1 EASY FIX CASTABLE SLEEVE h 6mm

Ref. 240GCAEF

rhein83• 1 EASY FIX CASTABLE SLEEVE h 9mm

Ref. 240GCLEF

SCREWS

rhein83• 1 EASY FIX TITANIUM LOCKING SCREW

Ref. 149VEF

rhein83• 1 EASY FIX TITANIUM SPACE SCREW

Ref. 239VSEF

rhein83• 1 OT EQUATOR SEALING SCREW

Ref. 149TEF

IMPRESSION COPINGS

rhein83• 1 TITANIUM OT EQUATOR LONG IMPRESSION COPING + TITANIUM LONG SCREW

Ref. 144TLE

LABORATORY ANALOGS

rhein83• 2 LABORATORY ANALOGS ø 4mm

Ref. 144AE

OT EQUATOR SCAN ABUTMENT

rhein83• 1 OT EQUATOR SCAN ABUTMENT + TITANIUM SCREW

Ref. 145SAE

TOOLS

rhein83• 1 UNLOCKING TOOL h 22,4mm

Ref. 761EEF

rhein83• 1 LONG UNLOCKING TOOL h 28,4mm

Ref. 761ELEF

rhein83• 1 EASY FIX T-BASE INSERTION TOOL

Ref. 491SEIM

rhein83• 1 HEXAGONAL KEY FOR SEALING SCREW

Ref. 772CSF

rhein83• 1 EASY FIX INSERTER, TESTER AND SEEGER EXTRACTOR

Ref. 491EEF
