OT EQUATOR

Rhein83 introduces OT Equator, the newest line of low profile castable and direct implant overdenture attachments.

With a low vertical profile of 2.1 mm and diameter of 4.4 mm OT Equator is the smallest attachment system on the market. This system offers multiple solutions for overdenture treatment planning when vertical space limitations are a consideration. Available in two versions, castable and prefabricated titanium abutments which are compatible with any implant brand on the market and manufactured with cuff heights from .5 mm to 7 mm. Female caps are retained by means of a stainless steel housing ranging in four levels of retention, making it easy to process at the dental laboratory or chairside in the dental office. A complete line of OT Equator accessories and tools are also available.

product info

study

product specifications

Videos and Documents

Product Information

Ot Equator 2017 Calcinabile 092ECQ Ref. 092ECQ
KIT CONTAINS:
• 2 SINGLE MALES
• 2 STAINLESS STEEL HOUSINGS
• 4 RETENTIVE CAPS
(2 soft, 2 stan dard)

Implants

OT EQUATOR FOR IMPLANTS

Ref 130
KIT CONTAINS:
• 1 TITANIUM ABUTMENT
• 1 TITANIUM HOUSING
• 1 PROTECTIVE DISK
•4 RETENTIVE CAPS
(1 extra -soft, 1 soft, 1 stan dard, 1 strong )

Ref 030
KIT CONTAINS:
• 1 TITANIUM ABUTMENT

Bars

Composizione barre sito

OT EQUATOR
threaded sleeve system for bonding

Ref. 160EQB
KIT CONTAINS:
• 2 EQUATOR THREADED for titanium sleeve (1.6 mm thread)
• 2 THREADED SLEEVES (1.6 mm thread)
• 2 STAINLESS STEEL HOUSINGS
• 2 EQUATOR SPACERS
• 8 RETENTIVE CAPS
(2 extra -soft, 2 soft, 2 stan dard, 2 processing )

Ot Equator 2017 Seeger 158ESA

ELASTIC SEEGER

Ref. 158ESA
KIT CONTAINS:
• 1 CASTABLE CYLINDER FOR SEEGER
• 1 SELF-EXTRACTING SEEGER
• 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGER

Caps and Smartbox kits

Ot Equator 2017 Kit Cappette 192ECE
CAPS ASSORTMENT KIT

Ref. 192ECE
KIT CONTAINS:
• 1 TITANIUM HOUSING
• 1 PROCESSING CAP
• 4 RETENTIVE CAPS (1 extra -soft, 1 soft, 1 stan dard, 1 strong )
• 1 PROTECTIVE DISK

Ot Equator 2017 Kit Smartbox 335SBC

SMART BOX KIT

Ref. 335SBC
KIT CONTAINS:
• 1 SMART BOX HOUSING WITH BLACK CAP FOR LABORATORY
• 4 RETENTIVE CAPS (1 extra -soft, 1 soft, 1 stan dard, 1 strong )
• 1 PINK PROTECTIVE DISK

Spare parts

Eq Calc ref 151ss Ref. 151SS
• 2 CASTABLE MALES

Cap Viol ref 140cev Ref. 140CEV
• 4 RETENTIVE CAPS - violet "STRONG" 2700g

Cap Bian ref 140cet Ref. 140CET
• 4 RETENTIVE CAPS - clear "STANDARD" 1800g

Cap Rosa ref 140cer Ref. 140CER
• 4 RETENTIVE CAPS - pink "SOFT" 1200g

Cap Gial ref 140ceg Ref. 140CEG
• 4 RETENTIVE CAPS - yellow "EXTRA-SOFT" 600g

Cap Ner ref 140cen Ref. 140CEN
• 4 PROCESSING CAPS - black (for laboratory use ONLY)

Contenit Eq Ref 141CAE Ref. 141CAE
• 2 STAINLESS STEEL HOUSINGS

Contenit Eq Ref 141CTE Ref. 141CTE
• 2 TITANIUM HOUSINGS

Smartbox Ref 330SBE Ref. 330SBE
• 1 SMARTBOX HOUSING WITH BLACK CAP

Capp Nera Smartbox Ref 335CSB Ref. 335CSB
• 4 BLACK SMARTBOX CAPS (for laboratory use ONLY)

equator-perfilettato 2e2 Ref. 039SFE2
• 1 EQUATOR THREADED 2.0mm (DIRECT INTO 2mm thread)

equator-perfilettato 1e6 Ref. 339SFE
• 1 EQUATOR THREADED 1.6mm (for titanium sleeve)

Guaina Ref 339GDF Ref. 239GSF
• 1 TITANIUM SLEEVE (1.6mm thread)

Spaziatore Ref 339SSE Ref. 339SSE
• 1 OT EQUATOR SPACER

Vite-Seeger New 158VAE Ref. 158VAE
• 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGERautoestraente

Seeger New 158SAE Ref. 158SAE
• 1 SELF-EXTRACTING WHITE SEEGER (for bar locking )

Seeger Rosso Grande 2e5 158CCE Ref. 158CCE
• 1 CASTABLE CYLINDER height 2,5mm (for seeger)

Seeger Rosso Grande 3e5 158CCAE Ref. 158CCAE
• 1 HIGH CASTABLE CYLINDER height 3,5mm (for seeger)

Accessories

Transfer Titanio 144TTE Ref. 144TTE
• 1 OT EQUATOR TITANIUM TRANSFER + TITANIUM SCREW

Ot Equator Transfer Plastica 144MTE Ref. 144MTE
• 1 IMPRESSION COPINGS (for individual tray )

Ot Equator Transfer impronta 044CAIN Ref. 044CAIN
• 1 IMPRESSION COPINGS NORMAL SIZE - OT EQUATOR WITH CAP FOR PICK UP IMPRESSION

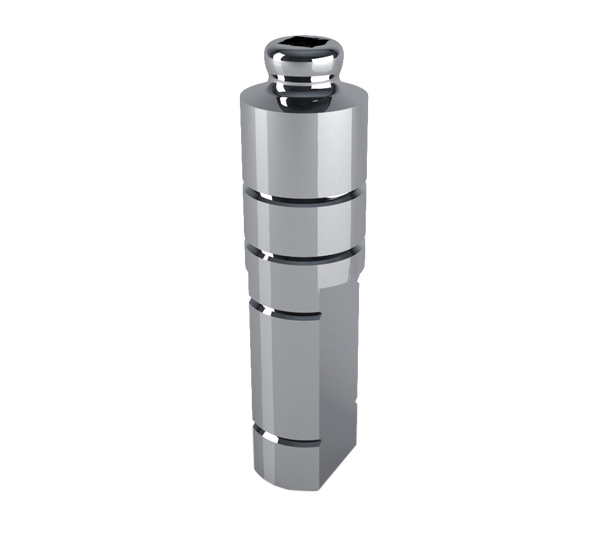

Analogo Ref 144AE Ref. 144AE
• 2 LABORATORY ANALOGS

Tools

Chiave parallel Ref 744AC01 Ref. 74AC01
• 1 PARALLELOMETER KEY "NORMAL SIZE"

Chiave Equator dinamometrica 2014 Holder-Inserito Ref. 774CHE
• 1 OT EQUATOR SQUARE SCREW DRIVER + HOLDER (square 1.25mm)

Holder Equator 774HC Ref. 774HC
•1 OT EQUATOR interchangeable HOLDER

Ot Equator Connettore-manipolo 760CE Ref. 760CE
• 1 SQUARE DRIVER CONNECTOR for torque controller contra angle (square 1.25mm)

Ot Equator inseritore-seeger185SIS Ref. 185SIS
• 1 METAL INSERTION TOOL FOR SEEGER

Inseritore-Estrattore-485IC Ref. 485IC
• 1 MULTIUSE CAPS INSERTER/EXTRACTOR TOOL

Estrattore-491EC

Ref. 491EC
• 1 MULTIUSE EXTRACTOR TOOL FOR CAPS (WITH HOLE STEM HOLDER)

Cricchetto 2014 completo

Ref. 760 CRD
• RATCHET TORQUE CONTROL DEVICE (For Ot Equator , Sphero block
and flex 15/35Ncm Strenght - Max 50Ncm torque, suggested 25Ncm)

Studio

Place OT Equator into implant using Equator square screwdriver [Item 774CQ]. Torque range is 22 - 25 newton centimers.

Silicon discs are placed over the Equators followed by nylon retentive caps with stainless steel housing. Equator Cap Assortment Kit is available [Item 192ECE].

Denture is prepared to accept female housings.

Female caps are picked up chair side and silicon discs are removed. Remove excess acrylic and finish denture.

Product Specification

• OT Equator 3 in 1 System specifications is smaller than ERA and Locator Systems with vertical dimensions of 2.1 mm and 4.4 mm overall width with the female cap in place

• OT Equator implant abutments are available to match any implant system on the market.

• Cuff heights are available from .5 mm - 7 mm.

*** Custom fit abutment service is now available. Please call customer service for details.
