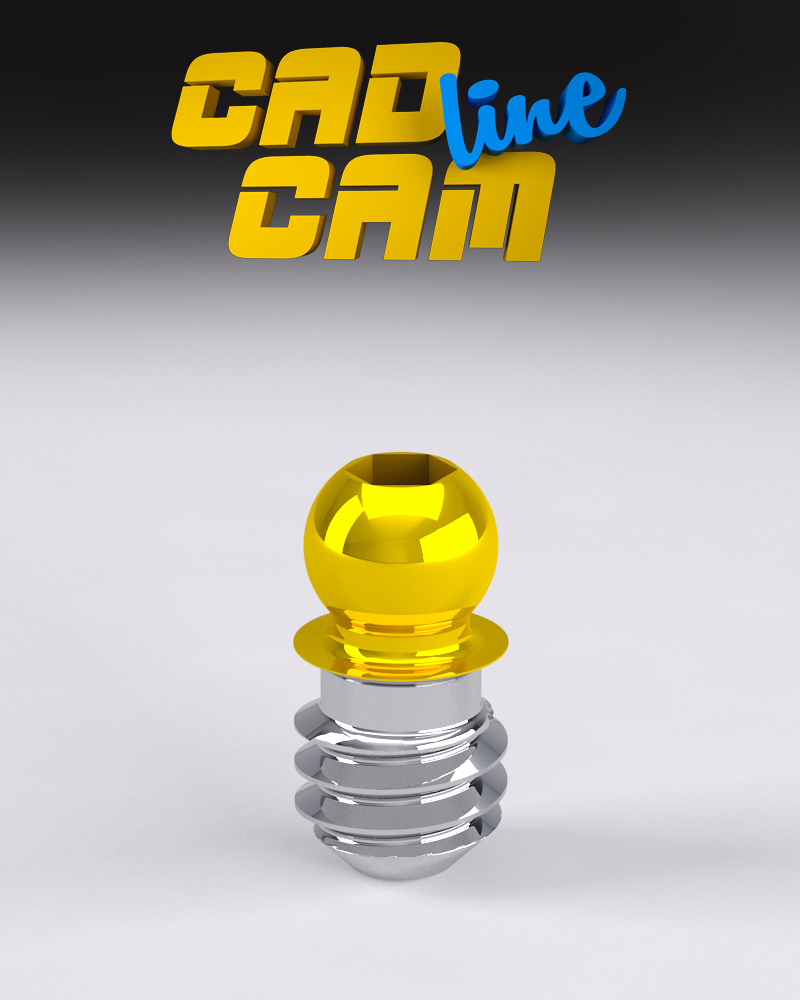

Indicated for multiple placement applications on CAD/CAM milled or self-tapped overdenture bars, the Single Threaded Sphere (STS) is manufactured with a titanium nitrate coating, creating a smooth, 1,600 Vickers hardness surface.
• 1 SINGLE THREADED SPHERE MICRO SIZE + TiN
HEX 0.9mm, THREAd 2.0mm
• 1 STAINLESS STEEL HOUSING
• 1 PROCESSING CAP
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 GREEN, 1 YELLOW, 1 PINK, 1 CLEAR)
• 6 SILVER CAPS MICRO SIZE (EXTRA-RESILIENT)
(ELASTIC AND GUMMY) - 200g
Ref. 048COM• 6 GOLD CAPS MICRO SIZE (ETRA-RESILIENT)
(SLIGHTLY ELASTIC) - 450g
Ref. 049PCM• 6 GREEN CAPS MICRO SIZE
(VERY ELASTIC RETENTION) - 200g
• YELLOW CAPS MICRO SIZE
(EXTRA SOFT RETENTION)- 450g
• 6 PINK CAPS MICRO SIZE
(SOFT RETENTION) - 800g
• 6 CLEAR CAPS MICRO SIZE
(STANDARD RETENTION) - 1100g
• 2 TITAN CAPS MICRO SIZE
• 2 BLACK CAPS MICRO SIZE
(FOR LABORATORY USE ONLY)
• 2 STAINLESS STEEL HOUSINGS MICRO SIZE
• 2 TITANIUM HOUSINGS MICRO SIZE
• 1 HEX DRIVER FOR THREADED SPHERE MICRO BRUGOLA
HEX 0.9mm
• 1 EXTRACTOR/INSERTER TOOL FOR CAPS NORMAL AND MICRO SIZES
(FOR THE INSERTION OF THE CAPS INSIDE THE METAL HOUSINGS)
Once the bar has been connected with wax, create an area where the attachment spacer will be placed.
Apply separator to the base of the attachment spacer and postion using the parallelometer key.
With the attachment spacer in position, complete the wax-up design.
Carefully remove the attachment spacers and proceed with the normal casting procedur.
Screw the threaded attachment of choice (micro Ball shown) into the threaded sleeve.
Place the assembled attachment into the parallelometer key. Use a self curing metal to metal bonding composite on the sleeve and in the cylinder.
After the composite is cured, remove any excess material.
Unscrew the attachment to verify if the threaded sleeve is securely bonded in plac.
The finished bar complete with attachments.
OT Cap Micro M2
