straight abutment for immediate loading

TEMPORARY DENTURE WITH WIRE REINFORCEMENT

IMMEDIATE LOAD

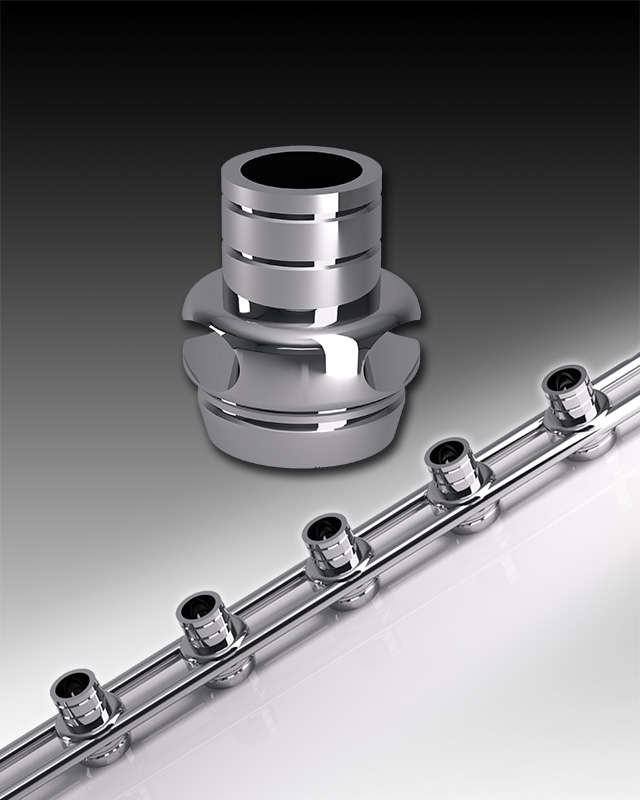

Titanium T-Base for immediate load temporary dentures with screw and lateral holes for titanium wire. Available in one diameter and two heights.

They are recommended when it is necessary to create quickly a provisional denture in the immediate load technique without creating tension on the implants. In case of inclined implants, the Extragrade flaring can be created by hand in towards the undercut area of the Ot Equator with a simple laboratory drill. The undercut of the Ot Equator will always be used as a retentive area for the Seeger.

TITANIUM T-BASE WITH LATERAL HOLES h 1,8mm

TITANIUM T-BASE WITH LATERAL HOLES h 3mm

PRODUCT INFO

DENTAL CLINIC

LABORATORY

PRODUCT SPECIFICATIONS

VIDEO

PRODUCT INFO

TITANIUM T-BASE
WITH LATERAL HOLES FOR TEMPORARY RESIN BRIDGE
WITH WIRE-REINFORCEMENT

Ref. CMTFP

Kit contains:
• 1 TITANIUM T-BASE (with lateral holes h1,8mm only available with ø 3,5mm)
• 1 TITANIUM SCREW (h2mm)
• 2 WHITE SEEGERS (with handle)
• 1 PINK SEEGER (with handle)

TITANIUM T-BASE
WITH LATERAL HOLES FOR TEMPORARY RESIN BRIDGE
WITH WIRE-REINFORCEMENT

Ref. CMTB30FP

Kit contains:
 • 1 TITANIUM T-BASE (with lateral holes h3mm only available with ø 3,5mm)
• 1 TITANIUM SCREW (h2mm)
• 2 WHITE SEEGERS (with handle)
• 1 PINK SEEGER (with handle)

Ref. MTFP

• 1 TITANIUM T-BASE WITH LATERAL HOLES FOR TEMPORARY RESIN BRIDGE (with wire-reinforcement h1,8mm only available with ø 3,5mm)

Ref. MTB30FP

• 1 TITANIUM T-BASE WITH LATERAL HOLES FOR TEMPORARY RESIN BRIDGE (with wire-reinforcement h3mm only available with ø 3,5mm)

Ref. 030

• 1 OT EQUATOR TITANIUM + TiN ABUTMENT

Ref. BE42

+ n° 42 Ot Equator
(Ref. 030 to be selected)

• 1 ASSORTMENT SET (autoclavable) + 42 OT EQUATOR +TiN ABUTMENTS
THE SET42 CAN BE CUSTOMIZED ON THE BASIS OF THE IMPLANTS BRANDS, IMPLANTS DIAMETERS AND CUFF HEIGHTS DESIRED. PLEASE INDICATE, IN THE ORDER, THE QUANTITY AND THE ABOVE SPECIFICATIONS FOR EVERY KIND OF ABUTMENT.
(Tools not included in the set)

Ref. VC

• 1 TITANIUM SCREW h 2mm

Ref. VM

• 1 TITANIUM SCREW FOR EXTRAGRADE T-BASE h6mm

Ref. VXL

• 1 TITANIUM SCREW h 11,5mm

Ref. SM6

• 6 WHITE SEEGERS WITH HANDLE (standard retention)

Ref. SRM6

• 6 PINK SEEGERS WITH HANDLE (soft retention)

Ref. TPM2

• 2 MINI OT EQUATOR IMPRESSION COPINGS (h 3,7 mm)

Ref. HR800

• 1 TITANIUM WIRE WITHOUT ELASTIC MEMORY (Ø 1,0mm)

 ASSORTMENT SET (autoclavable) + 42 OT EQUATOR +TiN ABUTMENTS

The set42 can be customized on the basis of the implants brands, implants diameters and cuff heights desired. Please indicate, in the order, the quantity and the above specifications for every kind of abutment.

LABORATORY

Titanium wire for the construction of structures with reinforced wire.

Titanium wire inserted inside a 1mm diameter through-bore hole.

Insert the titanium wire into the holes of the titanium t-bases.

Screw the titanium t-bases with through-hole one at a time and adapt the titanium wire following the suitable profile.

Teeth positioned and reduced following the template and available spaces.

The titanium t-bases for reinforced wire can be adapted in relation to the overall dimensions, the whole will be suitably opaque and then assembled with self-hardening resin.

The titanium t-bases with lateral holes do not have the Extragrade bevel, so if necessary it can be made manually, once the work is finished, paying the utmost attention in doing it always on the divergent side.

It is very important that the Seegers are positioned so that the opening is in the direction of the undercuts of the system.

Insertion of Seeger in all titanium t-bases.

Even with temporary bridges, the insertion lines must be followed in order to insert them correctly on the model and in the patient's mouth.

In the case of strong disparallelism (all on four type) it is advisable to insert the bridge first on the more inclined attachments, which in this case are the diatorics, and then switch to the front ones, snapping it into the correct position.

The resin-wire bridge is finished and delivered to the dentist in about 2 hours.
