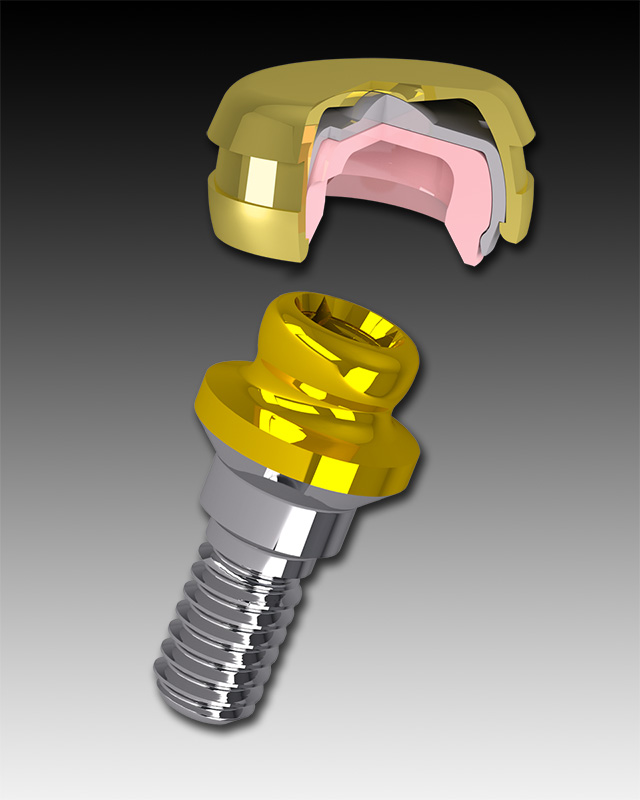

The new Smartbox is a titanium housing for retentive caps. Its innovative design, thanks to a tilting mechanism with a pivoting fulcrum, allows a passive insertion of the cap even under extreme divergence conditions, up to 50°. The Smartbox is compatible with the Ot Equator direct attachment. Ot Equator is available in various implant platforms and gingival heights from 0.5mm to 7.0mm. It is also produced for "unknown" implants of which the dentist has no information!

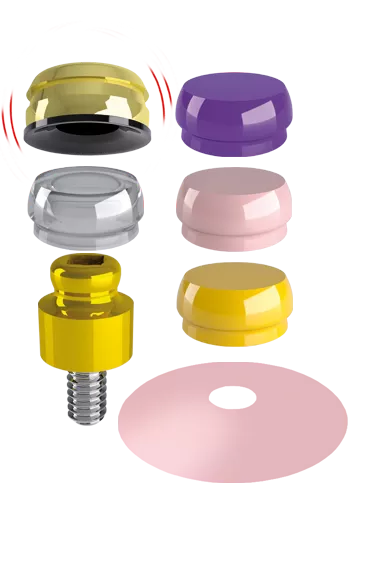

SET CONTENT
• 1 OT EQUATOR TITANIUM + TiN ABUTMENT
• 1 ANODIZED SMART BOX HOUSING WITH BLACK POSITIONING CAP
• 1 PINK PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)
Ref. 330SBE• 1 SMART BOX HOUSING WITH BLACK POSITIONING CAP
Ref. 335CSB• 4 BLACK SMARTBOX POSITIONING CAPS
Screw in the appropriate OT Equator attachment at the height of the gingival margin.
First place the protective disk and then the Smartbox on the OT Equator.
Place a drop of resin in the space prepared to accommodate the Smartbox and insert the prosthesis in the mouth.
When polymerisation is complete, remove the prosthesis with the Smartboxes enclosed, taking care to also remove the protective discs.
Finish the prosthesis while still retaining the black cap protecting the Smartbox.
When the prosthesis is finished, remove the black cap. The Smartbox mechanism is now free to move.
Insert the desired retention cap with the insertion tool.
Work finished.
