OT EQUATOR SYSTEM INFORMATION:
NOME AZIENDA offers the “narrow profile” attachment in multiple gingival heights. The unique design of this solution combines the smallest dimensions in terms of height and diameter. The TIN coating treatment guarantees a superior resistance to the titanium, up to 1600 Vickers degrees.
The dentist counts on a variety of retentive caps available in various degrees of elasticities from 600 grams up to 2.7 kg.
If the attachments are placed in a parallel plan of insertion the minimal duration of each cap will be 1 year with no need of replacing it.
2 different metal housings are available counting on the same elastic caps, tools and components:
- Regular Metal Housing (to be used with divergence from 0° up to 30°)
- Smart Box Housing (to be used with divergence from 30° up to 50°)
1
2
1
Regular Metal Housing
2
Smart Box Housing
Phase 1
Phase 1

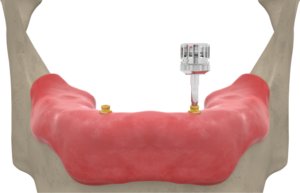

The screwdriver allows to screw the selected OT Equator abutment onto the implant's head with perfect mechanical coupling.
Phase 2
Phase 2
The protective discs are positioned on the attachments to "protect" them during the clinical phases. The metal housings are inserted with the elastic caps already inside.
Phase 3
Phase 3
Check the position of the prosthesis before bonding the metal housings. On the prosthesis, fill the implant sites with a self curing resin and insert into the patient's mouth.
Phase 4
Phase 4
The prosthesis is removed for a final check of the position of the attachments. The protective discs are removed and any excess resin eliminated before the prosthesis is completed and ready for insertion.
METAL HOUSING (30° to 50° divergence correction)
The Smart Box housing counts on an innovative design with reduced dimensions in order to optimize the aesthetic result in the treatments.

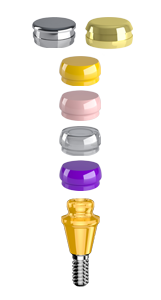

ELASTIC CAPS (different retentions available)
Each elastic cap, positioned inside the housing, guarantees the absorption of masticatory forces, managing every type of stress caused by the masticatory forces. The duration in the patient's mouth is prolonged over time but replacement is suggested within 1 year.
OT EQUATOR TITANIUM ABUTMENT (multiple gingival heights available)
The OT Equator abutment is screwed onto the implant with a perfect fit to the platform. The dentist can work with all the different brands and connections of implants. Chose the proper gingival height according to the clinical case counting on multiple options: 0,5 mm 1,00 mm 2,0 mm 3,0 mm 4,0 mm 5,0 mm 6,0 mm 7,0 mm
Phase 1
Phase 1
The OT Equator attachments are screwed onto the implants. The pink protective disks and the Smart Box housing are positioned with the black cap inside.
Phase 2
Phase 2
The spaces corresponding to the housing are filled with resin to optimize the subsequent insertion of the prosthesis. As soon as the resin has hardened, the pink protective disks are removed.
Phase 3
Phase 3
Excess resin is removed from the prosthesis. The black cap is removed with the special extractor tool.
Phase 4
Phase 4

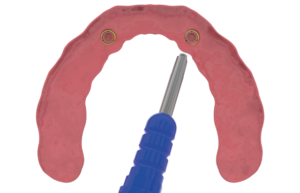

Completed prosthesis with inserted caps. The insertion of the caps is optimized by the special insertion tool.
STANDARD METAL HOUSING
This component is used to correct from 0° up to 30° of divergence between the dental implants. It's unique design allows to occupy a minimal vertical and diametric dimension.
ELASTIC CAPS (different retentions available)
Each elastic cap offers a 1 year duration time in the patients mouth (if the attachments are placed in a parallel plan of insertion).
OT EQUATOR TITANIUM ABUTMENT
The OT Equator abutment is screwed into the implant with a perfect fit to the platform. Chose the proper gingival height according to the clinical case counting on multiple options: 0,5 mm 1,00 mm 2,0 mm 3,0 mm 4,0 mm 5,0 mm 6,0 mm 7,0 mm
