CASTABLE ABUTMENTS

(on OT EQUATOR)

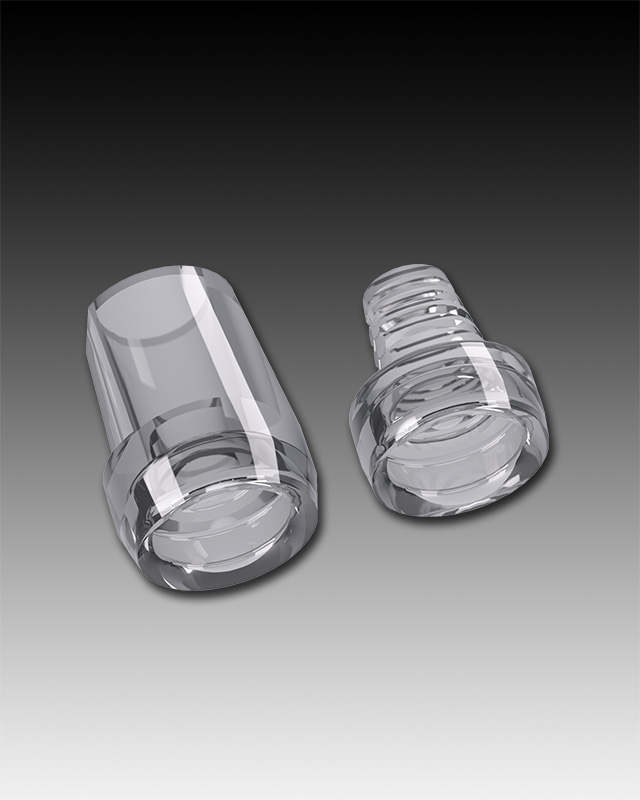

Extragrade castable abutment

with screw and Seeger

Extragrade castable abutment with screw for the lost wax casting technique. Available in one diameter only.
It is recommended in a fully castable framework. After casting, the Seeger housing will be regrooved/polished by the appropriate drill.
In the case of particularly inclined implants, it is possible to omit one screw (e.g. one out of four in an all-on-four denture), using the undercut of the Ot Equator as a retentive area for the Seeger.

Extragrade castable abutment

with no screw, Seeger only

Extragrade castable abutment with no screw for the lost wax casting technique. Available in one diameter only.
It is recommended when the screw when the prosthetic screw hole can create aesthetic problems in a complete castable structure. After casting, the Seeger housing will be regrooved/polished by the appropriate drill. In the case of particularly inclined implants, it is possible to omit one screw (e.g. one out of four in an all-on-four denture), using the undercut of the Ot Equator as a retentive area for the Seeger.

PRODUCT INFO

EXTRAGRADE CASTABLE ABUTMENT

Ref. CMEG40C

Kit contains:
• 1 EXTRAGRADE CASTABLE ABUTMENT WITH HOLE
• 1 TITANIUM SCREW (h2mm)
• 2 WHITE SEEGERS (with handle)
• 1 PINK SEEGER (with handle)

EXTRAGRADE CASTABLE ABUTMENT WITHOUT HOLE

Ref. MCEG15SF

Kit contains:
• 1 EXTRAGRADE CASTABLE ABUTMENT WITHOUT HOLE (only available with ø 4,0mm)
• 2 WHITE SEEGERS (with handle)
• 1 PINK SEEGER (with handle)

EXTRAGRADE CASTABLE ABUTMENT Ø 4,0 mm

Ref. MEG40C

Kit contains:
• 1 EXTRAGRADE CASTABLE ABUTMENT (Ø 4,0 mm)

EXTRAGRADE CASTABLE ABUTMENT WITHOUT HOLE

Ref. RMCEG15SF

Kit contains:
• 1 EXTRAGRADE CASTABLE ABUTMENT WITHOUT HOLE (only available with ø 4,0mm)

Ref. 030

• 1 EQUATOR TITANIUM ABUTMENT (with TiN coating)

Ref. VC

• 1 TITANIUM SCREW (h 2mm)

Ref. VXL

• 1 TITANIUM SCREW (h 11,5mm)

Ref. 022RGO

• 2 CASTABLE CONNECTION BARS

Ref. SM6

• 6WHITE SEEGERS WITH HANDLE (standard retention)

Ref. SRM6

• 6 PINK SEEGERS WITH HANDLE (soft retention)

TOOLS

Ref. 774CHE

• 1 SQUARE SCREW DRIVER + OT EQUATOR HOLDER (square tip 1.25mm - usable with the manual torque wrench)

Ref. 775CLE

• 1 LONG SQUARE SCREW DRIVER + OT EQUATOR HOLDER (square tip 1.25mm - usable with the manual torque wrench)

Ref. 760CE

• 1 OT EQUATOR SCREWDRIVER/STEM (ready for holder, for torque controller contra angle square 1.25mm)

Ref. 1760CRD

• 1 MANUAL TORQUE WRENCH FOR OT EQUATOR AND SPHERO BLOCK/FLEX (torque range : 15-35 ncm – max . allowed 50ncm)

Ref. 124ICP

• 1 UNIVERSAL HANDLE

Ref. FSS

• 1 BUR FOR THE SEEGER HOUSING POLISHING

LABORATORY

Model analysis with the help of the diagnostic teeth set-up mask. Where the space is limited, the Extragrade castable abutment is advisable which, while allowing a passive insertion, overcomes the divergencies and can be shaped accordingly to the available spaces.

Into the castable abutment with screw, likewise the titanium abutment with screw, you can see the bevel called Extragrade

The Extragrade position is indicated by the flat surface outside the abutment; this must always be positioned in corre- spondence with the undercut created by the tilted implant.

Cast and sand-blasted bar with 150 micron par- ticle size aluminum dioxide at 3 atmospheres.

Detail of the castable abutment after the cast- ing and the sandblasting.

Special bur to clean any oxides, micro-imperfections or bubbles inside the Seeger housing in those areas
where the sandblasting is not effective.

Test with the OT Equator analog, before proceed- ing with the trimming and the polishing of he framework.

Framework polished and ready to be finished with the aes- thetic covering.

Insert the Seeger as shown in the photo by placing the open section in correspondence with the undercut created by the inclination of the implant.

Work finished; caudal view.

Vestibular view. Please note that thanks to the pre-angled abutments and the Seeger there are no vestibular prosthet- ic screw holes.

Denture completed.
