OT Bar Multiuse

OT BAR Multiuse is a bar with two sides, a flat side and a round side, which can be used according to the needs.
If resilience is required, it is placed with the flat side upwards.
If a prosthesis with a less resilient function is to be built, it is placed with the round side upwards.
If the bar is placed in a single linear section, as in the case of two canines in the incisal area, either side A or B can be used.

If we use the round side upwards, we will obtain an oscillating movement in the distal edentulous area.
In the other version, we obtain resilience in both incisal and distal edentulous areas.

Another alternative is to obtain the superstructure directly on the MASTER model without the duplication.
The CLIP will be retained by the castable housing, guaranteeing, thanks to its tolerance, an adequate and long-lasting functionality.

PRODUCT INFO

DENTAL CLINIC

LABORATORY

PRODUCT SPECIFICATIONS

VIDEO

PRODUCT INFO

Scatola OTBAR MULTIUSE 021OBMi

OT BAR MULTIUSE

Ref. 021OBM

Kit contains:

• 2 CASTABLE BARS
• 4 POSITIONER CLIPS A
• 4 POSITIONER CLIPS B
• 4 CASTABLE BOXES
• 4 RETENTIVE PINK CLIPS
• 4 RETENTIVE YELLOW CLIPS
• 2 CONNECTORS

OT BAR Multiuse 0220BB
Ref. 022OBB

• 4 CASTABLE BARS OT BAR MULTIUSE

OT BAR Multiuse BOX CALCINABILERef. 025CPB

• 4 CASTABLE BOXES OT BAR MULTIUSE

OT BAR Multiuse Posizionatore Clips ARef. 023CPA

• 4 POSITIONER CLIPS A



OT BAR Multiuse Posizionatore Clips BRef. 024CPB

• 6 POSITIONER CLIPS B

OT BAR Multiuse 022RGORef. 022RGO

• 2 CASTABLE CONNECTORS

OT BAR Multiuse CLIP RITENTIVA GIALLA

 Ref. 027CRG

• YELLOW CLIPS (medium retention)

OT BAR Multiuse CLIP RITENTIVA ROSARef. 026CRR

• PINK CLIPS (soft retention)

OT BAR Multiuse CLIP NEW ROSSA NEWRef. 027CRS

• RED CLIPS (extra soft retention)

TOOLS

Inseritore-estrattore Ot BAR

Ref. 472ICV

• TOOL FOR INSERTING OT BAR MULTIUSE CLIPS

OT BAR Multiuse chiave Parallelometro
Ref. 028OCP

• PARALLELOMETER KEY FOR OT BAR MULTIUSE

OT BAR Multiuse connettore
Ref. 155CC

• CONNECTOR

DENTAL CLINIC

LABORATORIO

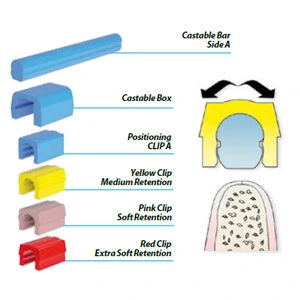

Side A - Rigid

Side A
The rigid bar is used as a “connection” between two stable teeth where a “back and forth” motion is required. The bar can also be used in scenarios
involving multiple abutments where the prosthesis is supported by a thin layer of soft tissue.

Mount the bar using Side A of the mandrel. Using resin or wax, complete the model.

The finished casting. Be careful not to wear out the retentive surfaces when polishing.

Block out any undercuts using wax and place Positioning Clips A on the bar.

To isolate, apply a small piece of tape (ex: teflon, Scotch) on the Positioning Clips A and on the cast bar. Insert the castable box housings.

To prevent resin from adhering to the bar, place a small piece of adhesive tape (ex: teflon, Scotch tape) over the bar. Use self-curing resin to connect the castable boxes.

Complete the model using wax and add castable connectors for extra reinforcement of acrylic. Sprue the model and cast.

The completed casting with retentive clips snapped in place.

The finished denture withcast reinforcment and retentive clips in place.

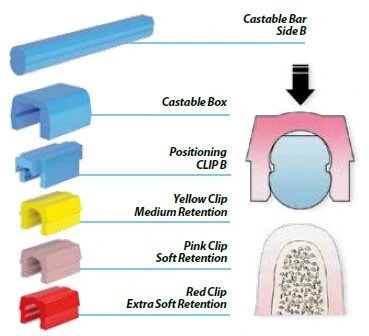

Side B - Resilient

Side B
The resilient bar is most often used in scenarios involving multiple abutments where the prosthesis is supported by a “NORMAL” layer of soft tissue.

Mount the bar using Side B of the mandrel. Using resin or wax, complete the model.

The completed casting. Use caution when polishing the surface. Be sure not to wear out the retentive undercuts.

Use wax to remove all undercuts. Apply a thin layer of wax on the top of the bar to create a cushion. Insert Positioning Clips B

To isolate, apply a small piece of tape (ex:teflon, Scotch) on the Positioning Clips B and on the cast bar. Insert the castable box housings.

To prevent resin from adhering to the bar, place a small piece of adhesive tape (ex: teflon, Scotch tape) over the bar. Use self-curing resin to connect the castable boxes.

Complete the model using wax and add castable connectors for extra reinforcement of acrylic. Sprue the model and cast

The completed casting with retentive clips snapped in place.

The finished denture with cast reinforcment and retentive clips in place.
