The purpose of the OT Equator “seeger” system is to create a passive connection for implant supported bars.
The elastic seeger will correct small imperfections created by the chairside impression technique or laboratory casting process. This reduces the risk of the implant bar to not seat passively.
Kit contains:
• 1 CASTABLE CYLINDER FOR SEEGER
• 1 SELF-EXTRACTING SEEGER
• 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGER
• 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGER
• 1 SELF-EXTRACTING WHITE SEEGER (for bar locking)
• 1 CASTABLE CYLINDER (height 2,5mm for seeger)
• 1 HIGH CASTABLE CYLINDER (height 3,5mm for seeger)
Kit contains:
• 2 SINGLE MALES
• 2 STAINLESS STEEL HOUSINGS
• 4 RETENTIVE CAPS (2 soft, 2 standard)
Kit contains:
• 1 OT EQUATOR TITANIUM + TiN ABUTMENT
• 1 STAINLESS STEEL HOUSING
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)
• 1 OT EQUATOR TITANIUM + TiN ABUTMENT
Kit contains:
• 2 EQUATOR THREADED FOR TITANIUM SLEEVE (1.6 mm thread)
• 2 THREADED SLEEVES(1.6 mm thread)
• 2 STAINLESS STEEL HOUSINGS
• 2 EQUATOR SPACERS
• 8 RETENTIVE CAPS(2 extra-soft, 2 soft, 2 standard, 2 processing)

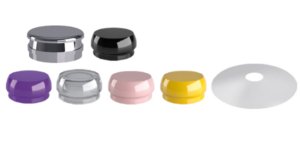

Kit contains:
• 1 STAINLESS STEEL HOUSING
• 1 PROCESSING CAP
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)

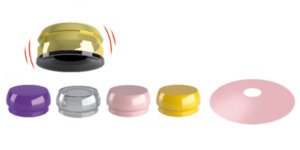

Kit contains:
• 1 SMART BOX HOUSING WITH BLACK POSITIONING CAP
• 1 PINK PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)
Ref. 151SS• 2 CASTABLE MALES
Ref. 140CEV• 4 RETENTIVE CAPS / VIOLET (strong retention 2700g)
Ref. 140CET• 4 RETENTIVE CAPS / CLEAR (standard retention 1800g)
Ref. 140CER• 4 RETENTIVE CAPS / PINK (soft retention 1200g)
Ref. 140CEG• 4 RETENTIVE CAPS / YELLOW (extra-soft retention 600g)
Ref. 140CEN• 4 PROCESSING CAPS / BLACK (for laboratory use only)
Ref. 141CAE• 2 STAINLESS STEEL HOUSINGS
Ref. 141CTE• 2 TITANIUM HOUSINGS / FUCHSIA ANODIZED
Ref. 330SBE• 1 SMART BOX HOUSING WITH BLACK POSITIONING CAP
Ref. 335CSB• 4 BLACK SMARTBOX POSITIONING CAPS
Ref. 039SFE2• 1 OT EQUATOR THREADED (direct into 2mm thread)
Ref. 339SFE• 1 OT EQUATOR THREADED (1.6mm for titanium sleeve)
Ref. 239GSF• 1 TITANIUM SLEEVE (thread 1.6mm)
Ref. 339SSE• 1 OT EQUATOR SPACER
• 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGER
• 1 SELF-EXTRACTING WHITE SEEGER (for bar locking)
• 1 CASTABLE CYLINDER (h 2,5mm for seeger)
• 1 HIGH CASTABLE CYLINDER (h 3,5mm for seeger)
Ref. 144TTE• 1 OT EQUATOR TITANIUM TRANSFER + TITANIUM SCREW
Ref. 144MTE• 1 IMPRESSION COPING (for individual tray)
Ref. 044CAIN• 1 IMPRESSION COPING NORMAL SIZE - OT EQUATOR(with interchangeable cap for pick up impression)
Ref. 144AE• 2 LABORATORY ANALOGS
• PARALLELOMETER KEY (normal)
• 1 SQUARE SCREW DRIVER for tightening OT EQUATOR
(SQUARE TIP 1.25MM) (USABLE WITH THE MANUAL TORQUE WRENCH)
• 1 OT EQUATOR SCREWDRIVER/STEM FOR TORQUE CONTROLLER WITH SQUARE CONICAL TIP
• METAL INSERTION TOOL FOR SEEGER
• MULTIUSE CAPS INSERTER/EXTRACTOR TOOL
• MULTIUSE EXTRACTOR TOOL FOR CAPS (with hole stem holder)
• RATCHET TORQUE CONTROL DEVICE (for ot equator , sphero block and flex 15/35ncm strength - max 50ncm torque , suggested 25ncm)
OT Equator titanium attachments screwed into the implants. The elastic seeger system will be used to position the bar.
The cast bar in position. Insert the PEEK elastic seeger ring into the cylindrical space.
Using the insertion tool, push down the PEEK elastic seeger ring until it is fully seated.
PEEK seeger ring in position, ready to screw the titanium locking screw.
After the elastic seeger ring has been inserted, lock the bar into place using the titanium locking screw, (Torque suggested 15 Ncm)
The finished bar secured in the mouth. A passive connection has been achieved due to the elastic PEEK seeger rings.
The completed prosthesis. For best results a reinforced superstructure is always recommended.
In case of a future check, the special internal design of the PEEK seeger ring allow the self extraction together with the titanium locking screw.
Screw the OT EQUATOR on the plaster model analogues.
Place the castable red ring, followed by Laboratory Seeger (thin part down) tighten the screw cap in titanium without forcing.
The cast bar in position on the model.
The cast framework in position. Undercuts on the stainless steel housing can be blocked out using composite material to maintain a passive connection.
Fit and stability of the prosthesis can be regulated using nylon caps.Various levels of retention are available.
The final prosthesis.
Insertion of the Ot Equator seeger inside the self-extracting peek ring already in position.
Like the titanium seeger screw, the Ot Equator seeger also removes the self-extracting peek ring during unscrewing.
2 threaded Ot Equator for cam and 2 OT Equator seeger in position, in case of divergence (the Ot Equator seegers follow the direction of the implants) the use of Smart Box housings is recommended.
Normo
Ø 2.5 mm
Hex 1.3 mm
Thread 1.6mm
Micro
Ø 1.8 mm
Hex 0.8 mm
Thread 1,6mm
OT Equator Profile
Ø 2.5 mm
Square 1.2 mm
Thread 1,6mm
Threaded Sleeve
Height 2.25 mm
Width 2.2 mm
