OT Equator

Direct attachment for implant retained overdenture

OT Equator is the new “narrow” profile titanium attachment available for all implant platforms, diameters and connections. OT Equator is the smallest dimensional overdenture attachment, in terms of size, available on the market today counting on reduced diameter and height.

The maximum vertical dimension (attachment + retentive cap and housing) is only 2.1 mm with a diameter (attachment + retentive cap and housing) of 4.5 mm.

This system offers multiple technical solutions, depending on the prosthetic project, with the possibility of planning various types of overdenture treatments.

The OT Equator attachment is fabricated in titanium material (grade 5 Eli) with a nitride coating surface. This treatment improve the hardness up to 1600 Vickers with less adhesion of plaque and bacteria and maximum wear-resistance over time. The function of this attachment is guaranteed by the coupling between the hemisphere and the retentive cap.

The retentive caps are available in different colours corresponding to different levels of retention and must always be used with the appropriate metal housings to ensure maximum effectiveness and ease of replacement both in the dental cabinet and in the laboratory.

Each OT Equator attachment is available in various gingival heights, depending on the implant platform, starting from a minimum of 0.5mm up to a maximum of 7.0mm. It is also manufactured to be compatible with ‘unknown’ dental implants of which the dentist has no information!

PRODCUT INFO

DENTAL CLINIC

LABORATORY

PRODUCT SPECIFICATIONS

VIDEO

PRODUCT INFO

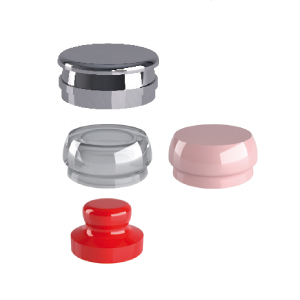

CASTABLE

Ref. 092ECQ

Kit contains:

• 2 SINGLE MALES
• 2 STAINLESS STEEL HOUSINGS
• 4 RETENTIVE CAPS (2 soft, 2 standard)

IMPLANTS

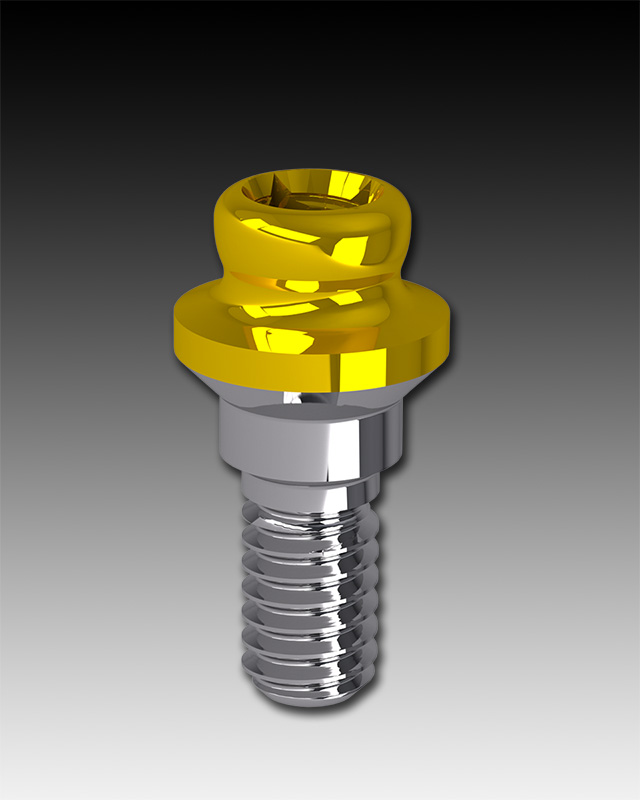

OT EQUATOR FOR IMPLANTS KIT

Ref. 130

Kit contains:

• 1 OT EQUATOR TITANIUM + TiN ABUTMENT
• 1 STAINLESS STEEL HOUSING
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)

Ref. 030

• 1 OT EQUATOR TITANIUM + TiN ABUTMENT

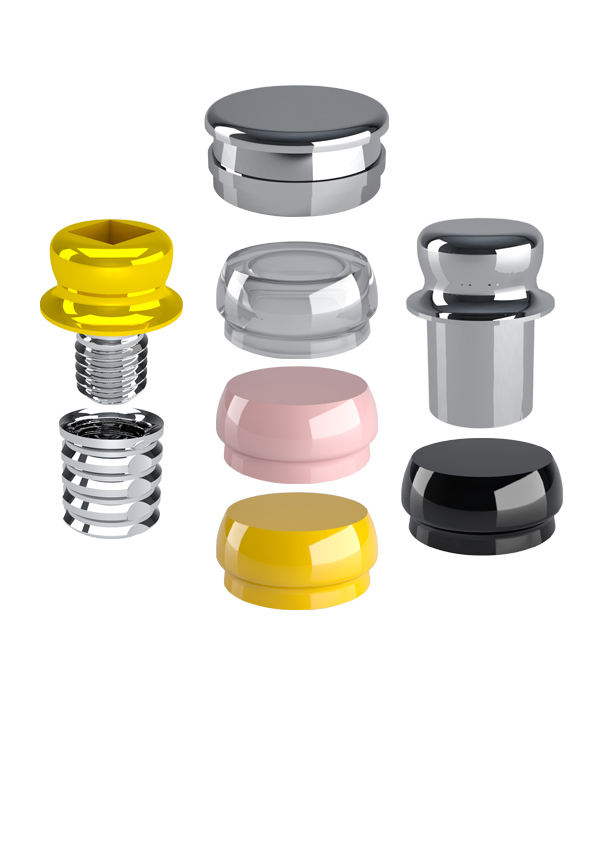

BARS

OT EQUATOR THREADED SLEEVE SYSTEM KIT

FOR BONDING

Ref. 160EQB

Kit contains:

• 2 EQUATOR THREADED FOR TITANIUM SLEEVE (1.6 mm thread)
• 2 THREADED SLEEVES(1.6 mm thread)
• 2 STAINLESS STEEL HOUSINGS
• 2 EQUATOR SPACERS
• 8 RETENTIVE CAPS(2 extra-soft, 2 soft, 2 standard, 2 processing)

ELASTIC SEEGER

ELASTIC SEEGER KIT

Ref. 158ESA

Kit contains:
• 1 CASTABLE CYLINDER FOR SEEGER
• 1 SELF-EXTRACTING SEEGER
• 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGER

CAPS ASSORTMENT KIT

Ref. 192ECE

Kit contains:
• 1 STAINLESS STEEL HOUSING
• 1 PROCESSING CAP
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)

SMART BOX KIT

Ref. 335SBC

Kit contains:
• 1 SMART BOX HOUSING WITH BLACK POSITIONING CAP
• 1 PINK PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)

SPARE PARTS

Ref. 151SS

• 2 CASTABLE MALES

Ref. 140CEV

• 4 RETENTIVE CAPS / VIOLET (strong retention 2700g)

Ref. 140CET

• 4 RETENTIVE CAPS / CLEAR (standard retention 1800g)

Ref. 140CER

• 4 RETENTIVE CAPS / PINK (soft retention 1200g)

Ref. 140CEG

• 4 RETENTIVE CAPS / YELLOW (extra-soft retention 600g)

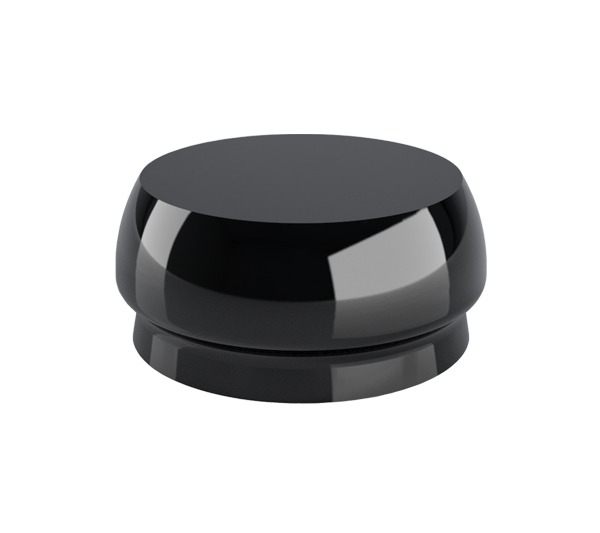

Ref. 140CEN

• 4 PROCESSING CAPS / BLACK (for laboratory use only)

Ref. 141CAE

• 2 STAINLESS STEEL HOUSINGS

Ref. 141CTE

• 2 TITANIUM HOUSINGS / FUCHSIA ANODIZED

Ref. 330SBE

• 1 SMART BOX HOUSING WITH BLACK POSITIONING CAP

Ref. 335CSB

• 4 BLACK SMARTBOX POSITIONING CAPS

Ref. 039SFE2

• 1 OT EQUATOR THREADED (direct into 2mm thread)

Ref. 339SFE

• 1 OT EQUATOR THREADED (1.6mm for titanium sleeve)

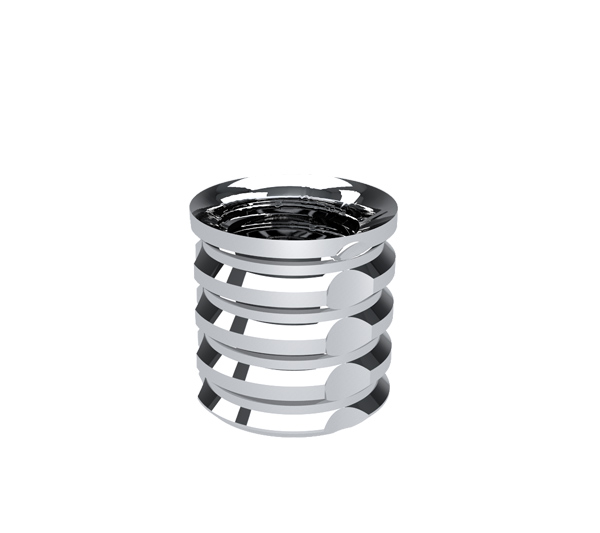

Ref. 239GSF

• 1 TITANIUM SLEEVE (thread 1.6mm)

Ref. 339SSE

• 1 OT EQUATOR SPACER

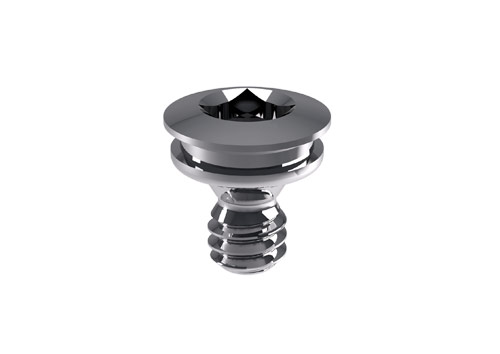

Ref. 158VAE

• 1 TITANIUM SCREW FOR SELF-EXTRACTING SEEGER

Ref. 158SAE

• 1 SELF-EXTRACTING WHITE SEEGER (for bar locking)

Ref. 158CCE

• 1 CASTABLE CYLINDER (h 2,5mm for seeger)

Ref. 158CCAE

• 1 HIGH CASTABLE CYLINDER (h 3,5mm for seeger)

ACCESSORIES

Ref. 144TTE

• 1 OT EQUATOR TITANIUM TRANSFER + TITANIUM SCREW

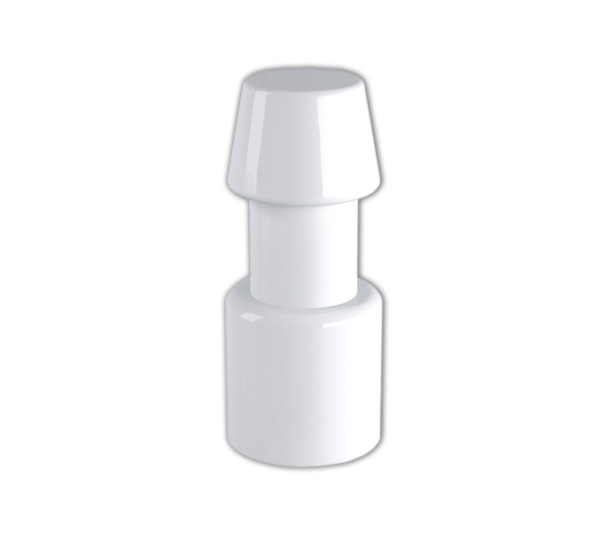

Ref. 144MTE

• 1 IMPRESSION COPINGS (for individual tray)

Ref. 044CAIN

• 1 IMPRESSION COPINGS NORMAL SIZE - OT EQUATOR(with interchangeable cap for pick up impression)

Ref. 144AE

• 2 LABORATORY ANALOGS

TOOLS

Ref. 74AC01

• PARALLELOMETER KEY (normal)

Ref. 776CGC

• 1 SQUARE SCREW DRIVER for tightening OT EQUATOR
(SQUARE TIP 1.25MM) (USABLE WITH THE MANUAL TORQUE WRENCH)

Ref. 760CQC

• 1 OT EQUATOR SCREWDRIVER/STEM FOR TORQUE CONTROLLER WITH SQUARE CONICAL TIP

Ref. 185SIS

• METAL INSERTION TOOL FOR SEEGER

Ref. 485IC

• MULTIUSE CAPS INSERTER/EXTRACTOR TOOL

Ref. 491EC

• MULTIUSE EXTRACTOR TOOL FOR CAPS (with hole stem holder)

Ref. 760CRD-US

• RATCHET TORQUE CONTROL DEVICE (for Ot Equator , Sphero block and flex 10/70ncm strenght - suggested 25ncm For Ot Bridge System and all the Rhein83's line)

DENTAL CLINIC

Place OT Equator into implant using Equator square screwdriver [Item 774CQ]. Torque range is 22 – 25 newton centimers.

Silicon discs are placed over the Equators followed by nylon retentive caps with stainless steel housing. Equator Cap Assortment Kit is available [Item 192ECE].

Denture is prepared to accept female housings.

Female caps are picked up chair side and silicon discs are removed. Remove excess acrylic and finish denture.

PRODUCT SPECIFICATIONS

OT Equator abutment

• OT Equator 3 in 1 System specifications is smaller than ERA and Locator Systems with vertical dimensions of 2.1 mm and 4.4 mm overall width with the female cap in place

• OT Equator implant abutments are available to match any implant system on the market.

• Cuff heights are available from .5 mm – 7 mm.

*** Custom fit abutment service is now available. Please call customer service for details.
