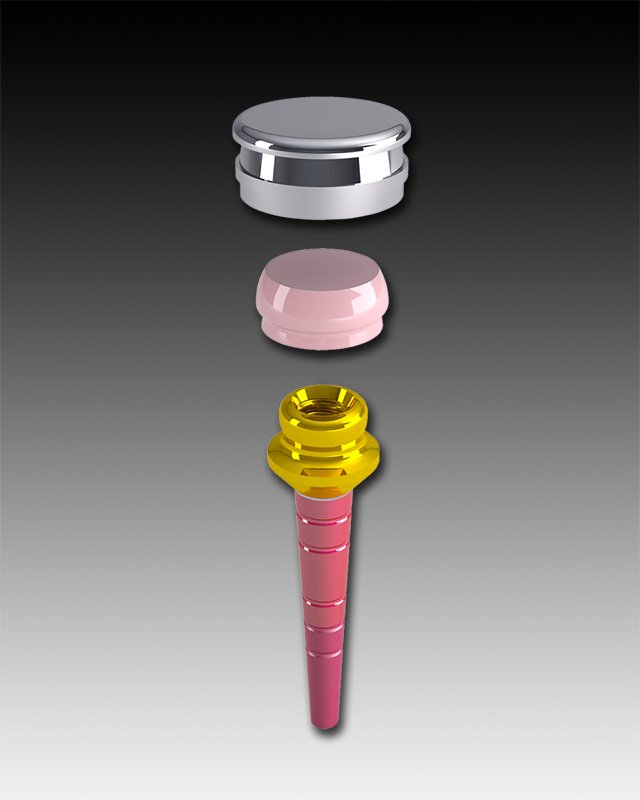

Pivot with low profile head, to be used even in reduced spaces.
Titanium with TiN treatment that increases hardness up to 1600 Vickers.
7-9-10 mm pivots to be used in root canals of different sizes.
They can also be used in divergent roots thanks to the “Smartbox” housing which can correct up to 50° of divergence.
(low profile head pivots)
Kit contains:
• 1 TITANIUM OT EQUATOR PIVOT (h7,9 or 10mm of the length chosen)
(low profile head pivots)
Kit contains:
• 2 TITANIUM OT EQUATOR PIVOTS (h7,9 or 10mm of the same length chosen)
• 2 OT EQUATOR ANODIZED TITANIUM HOUSINGS
• 2 YELLOW EXTRA SOFT CAPS
• 2 PINK SOFT CAPS
• 2 CLEAR STANDARD CAPS
• 2 TRANSPARENT PROTECTIVE DISKS
Kit contains:
• 1 STAINLESS STEEL HOUSING
• 1 PROCESSING CAP
• 1 PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)
Kit contains:
• 1 SMART BOX HOUSING WITH BLACK POSITIONING CAP
• 1 PINK PROTECTIVE DISK
• 4 RETENTIVE CAPS (1 extra-soft, 1 soft, 1 standard, 1 strong)
Ref. 140CEV• 4 RETENTIVE CAPS / VIOLET (strong retention 2700g)
Ref. 140CET• 4 RETENTIVE CAPS / CLEAR (standard retention 1800g)
Ref. 140CER• 4 RETENTIVE CAPS / PINK (soft retention 1200g)
Ref. 140CEG• 4 RETENTIVE CAPS / YELLOW (extra-soft retention 600g)
Ref. 140CEN• 4 PROCESSING CAPS / BLACK (for laboratory use only)
Ref. 141CAE• 2 STAINLESS STEEL HOUSINGS
Ref. 141CTE• 2 TITANIUM HOUSINGS / FUCHSIA ANODIZED
Ref. 330SBE• 1 SMART BOX HOUSING WITH BLACK POSITIONING CAP
Ref. 335CSB• 4 BLACK SMARTBOX POSITIONING CAPS
• MULTIUSE CAPS INSERTER/EXTRACTOR TOOL
• MULTIUSE EXTRACTOR TOOL FOR CAPS (with hole stem holder)
• MOOSER BUR FOR PIVOTS OF 7 – 9 – 10mm
• MOOSER BUR FOR PIVOTS OF 12 – 14mm
• OT REVERSE 3 DIAMOND SHAPED BUR FOR ROOTS
Prepare the root by the mucosal level and adjust the radicular cavity by using a Mooser Bur with the proper dimensions.
Fill-up the radicular cavities with proper composite cements, insert than the spherical titanium pivots.
Cemented MICRO block pivot in position, retentive notches were applied to support the permanents fixation.
Place the directional rings in position between the roots and retentive caps. Proceed by taking the imprint.
Alginate impression: attachment placements in evidence.
Place the protective disks between the directional rings and the retentive caps. Feel with self curing resin and than place the prosthesis in the patient’s mouth.
When the resin will be hard enough remove the protective disk and clean up any excess of resin.
Protesi finita.
